Overview

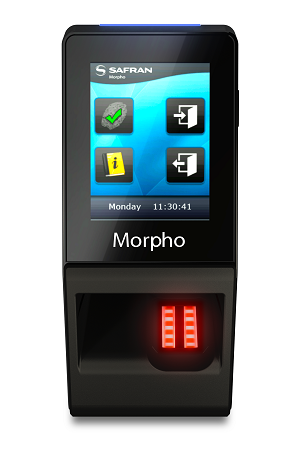

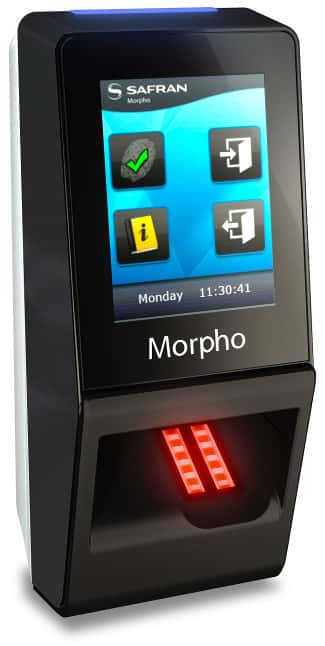

The SIGMA range now includes the Sigma Lite Plus! Engineered with the same attention to detail and performance as its predecessors, the MorphoAccess® SIGMA Lite Plus terminals are specifically designed to equip narrow mounting surfaces, such as glass/aluminium door mullions, turnstiles, or server rack doors. With two designs (Sigma Lite and Sigma Lite Plus) and multiple card reader options, there are a variety of models to address the widest range of deployment scenarios, both indoors and outdoors. The Sigma Lite Plus incorporates a 2.8 inch QVGA touchscreen which provides a wider range of functionality including:

• Time and Attendance In and Out function keys
• User ID, PIN and BioPin management
• Inutitive icons and live messages

Worlds No.1 Fingerprint Technology Inside
Morpho fingerprint technology ranked #1 by NIST for accuracy
Up to 10,000 users (30,000 templates) in 1:N identification mode
1:10,000 user matching in 1 second
Accuracy maintained regardless of number of users in database
FBI PIV IQS certified optical sensor
IP65 rated
Full Set of card reader options: - Prox® - iClass® - MIFARE®/MIFARE® Plus/DESFire®/NFC

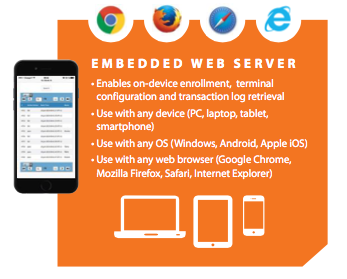

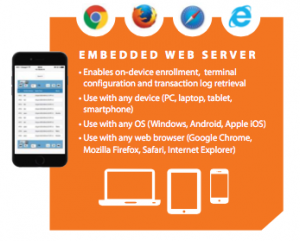

Embedded Webserver for increased functionality

• Enables on-device enrolment, terminal configuration and transaction log retrieval
• Can be used with any device, (PC, laptop, tablet, or smartphone
• Can be used with any OS (Windows, Apple iOS, Android
• Use with any web browser (Google Chrome, Mozilla Firefox, Safari, Internet Explorer)

Product Variants

MA SIGMA Lite Plus Standard (Fingerprint only)
- Mono-factor Bio (500 users, 3K and 10K users with license)
- IP65 rated
- Certifications: CE, CB, FCC
- Manufacturers Part No: 293678657

MA SIGMA Lite Plus HID iClass
- Multi-factor Bio/Card (500 users, 3K and 10K users with license)
- HID i-class® Smartcard Reader
- IP65 rated
- Certifications: CE, CB, FCC
- Manufacturers Part No: 293673644

MA SIGMA Lite Plus HID Prox
- Multi-factor Bio/Card (500 users, 3K and 10K users with license)
- HID Prox® Smartcard Reader
- IP65 rated
- Certifications: CE, CB, FCC
- Manufacturers Part No: 293678678

MA SIGMA Lite Plus MIFARE®/MIFARE® Plus/DESFire®
- Multi-factor Bio/Card (500 users, 3K and 10K users with license)
- MIFARE®/MIFARE® Plus/DESFire® Smartcard Reader
- IP65 rated
- Certifications: CE, CB, FCC
- Manufacturers Part No: 293678660

Sigma Lite Plus Compatibility

Compatible with existing Morphoaccess and Bioscrypt installations
Using MorphoManager application or Morpho Integrators Kit (MIK) SDK on a Morpho Network
Using SecureAdmin application or Secure SDK on a Bioscrypt network

Anti-Fraud Features

Fake Finger Detection
Duress Finger
Timed anti-pass back function
Banned/Authorised user lists

The Sigma Lite Plus is compatible with the following 3rd Party Access Control Systems

Controlsoft Lite / Pro
Honeywell Win-Pak
Kantech Entrapass
Lenel OnGuard
Paxton Net 2
Siemens Si-Pass

More being added, please contact us if your access control system is not listed above

Technical Specifications

CPU: ARM® CortexTM-A9 core 1GHz Operating System: Linux Operating System
Certifications: FBI PIV IQS Certified optical fingerprint reader
Touchscreen: 2.8" QVGA Touchscreen
Contactless Reader Options: Prox®, iClass®, MIFARE®/MIFARE® Plus/DESFire®/NFC Network Communications: - Ethernet, RS485, USB - Wi-Fi option Power Supply: - 12V-24V DC, Power over Ethernet (PoE) - Compatible with PoE+ switches
Internal Storage Capacity: 512MB Flash, 512MB RAM
- 500 user records, extendable to 3,000 or 10,000 with license (3 templates each, including 1 duress)
- 250,000 IDs in authorised user list - 1 Million transaction logs
Inputs/Outputs: Wiegand In & Out (customisable up to 512 bits), Door Relay, 2 General Purpose Inputs (including Door monitoring), 2 General Purpose Outputs
Tamper switches
Operating Conditions: - Temperature: -20°C to 55°C (-4°F to 131°F)
- Humidity: 10% to 80% (non condensing) Ingress Protection: IP65
Mechanical impact protection: IK08 (Sigma Lite only) HxWxD = 156*68*62 mm (6.14*2.68*2.44 inches)
Weight: 280 grams
EMC/Safety Standards: CE, CB, FCC RoHS, REACh and WEEE compliant

For more information on this product range please email us at sales@eyenetwatch.com.
